SEL-751 Feeder Protection Relay
- Complete Feeder Protection
- Directional Protection
- Arc-Flash Mitigation
- Sync Check Capabilities
- 5" Color or 2 Line LCD Display
- DC Battery Monitoring
- Programmable Pushbuttons
- Programmable Targets / LEDs
- Phase indoors or outdoors, underground or overhead, for 0.5V to 500kV test points
- Phase underground cables from 50A to 600A using current measurements
- Test without de-energizing lines
- Balance loads to minimize losses
- Identify and mark correct phasing for system mapping
- Ensure substation connections are phase correct

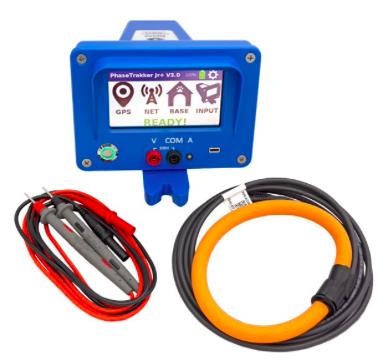

EDM Phase Trakker Jr+
Elgin Power Solutions

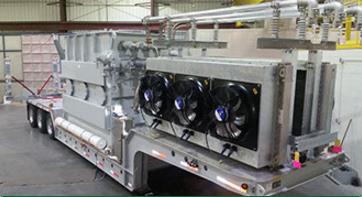

Mobile Substations

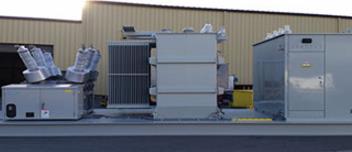

Unitized Substations
Specializing in complex electrical systems and integration. Products include mobile substations, unitized substations, capacitor banks, harmonic filter banks, reactors, enclosures, metering cabinets, junction cabinets and turnkey substations.

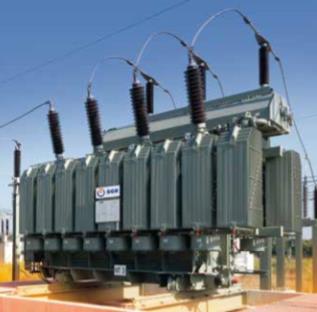

SGB-SMIT Group
The SGB-SMIT Group stands for professionalism, experience, reliability technological knowhow, and economic efficiency.
The Group develops and produces power transformers in the range from 50 kVA up to incl. 1,200 MVA within the voltage range up to 765 kV.
Oldcastle - Plastibeton Channel / Trench
Plastibeton Channel System is designed and tested to support 40,000 lbs over a 10x10 square area. Utilizing a high density polymer concrete made with 6% resin and 94% stone, the 20,000 psi composite material does not absorb water, is not affected by acids, salts, chemical, and has exceptional
resistance to freeze / thaw cycles.
The SEL 3355-2 hardened industrial substation computer is built to withstand harsh environments in utility and industrial applications. With no moving parts, including hard drives or fans, SEL computers have over ten times the mean time between failures (MTBF) of typical industrial computers.
SEL 3355-2 Powerful, Rugged, Reliable Computer
TAVRIDA - OSM BREAKERS
- 15kV and 27kV systems
- Up to 800A
- Six (6) voltage sensors and three (3)
current sensors built in
- Magnetically actuated vacuum
interrupters
- Tested to 30,000 CO operations at
full load
- Maintenance free and light weight
- 5-year warranty
Key Battery Parameters Monitored and Recorded:
String Voltage, Float Current, Cell Voltage, Cell Resistance, Terminal & Connection Resistance, Cell & Ambient Temperature, DC Ground Fault, and Electrolyte Level.

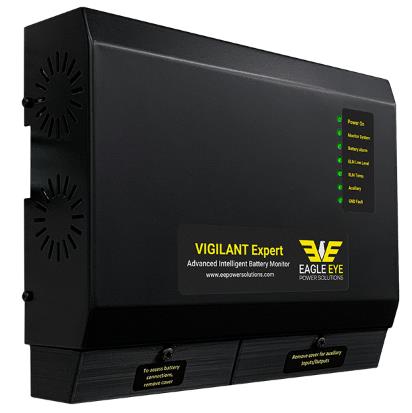

Eagle Eye Power Solutions
Vigilant Battery Management System (BMS)
